CSE332S Object-Oriented Programming in C++ (Lecture 13)

Memory layout of a C++ program, variables and their lifetimes

C++ Memory Overview

4 major memory segments

Global: variables outside stack, heap
Code (a.k.a. text): the compiled program
Heap: dynamically allocated variables
Stack: parameters, automatic and temporary variables (all the variables that are declared inside a function, managed by the compiler, so must be fixed size)
For the dynamically allocated variables, they will be allocated in the heap segment, but the pointer (fixed size) to them will be stored in the stack segment.

Key differences from Java

Destructors of automatic variables called when stack frame where declared pops
No garbage collection: program must explicitly free dynamic memory

Heap and stack use varies dynamically

Code and global use is fixed

Code segment is “read-only”


int g_default_value = 1;

int main (int argc, char **argv) {
  Foo *f = new Foo;

  f->setValue(g_default_value);

  delete f; // programmer must explicitly free dynamic memory

  return 0;
}

void Foo::setValue(int v) {
  this->m_value = v;
}

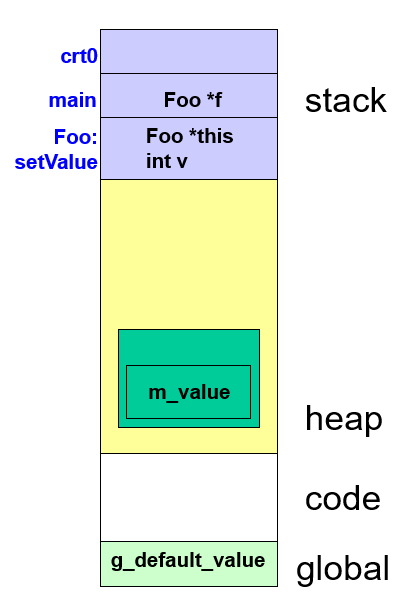

Image of memory layout

Memory, Lifetimes, and Scopes

Temporary variables

Are scoped to an expression, e.g., a = b + 3 * c;

Automatic (stack) variables

Are scoped to the duration of the function in which they are declared

Dynamically allocated variables

Are scoped from explicit creation (new) to explicit destruction (delete)

Global variables

Are scoped to the entire lifetime of the program
Includes static class and namespace members
May still have initialization ordering issues

Member variables

Are scoped to the lifetime of the object within which they reside
Depends on whether object is temporary, automatic, dynamic, or global

Lifetime of a pointer/reference can differ from the lifetime of the location to which it points/refers

Direct Dynamic Memory Allocation and Deallocation


#include <iostream>
using namespace std;
int main (int, char *[]) {
  int * i = new int;      // any of these can throw bad_alloc
  int * j = new int(3);
  int * k = new int[*j];
  int * l = new int[*j];
  for (int m = 0; m < *j; ++m) {   // fill the array with loop
    l[m] = m;
  }
  delete i; // call int destructor
  delete j; // single destructor call
  delete [] k;  // call int destructor for each element
  delete [] l;
  return 0;
}

Issues with direct memory management

A Basic Issue: Multiple Aliasing


int main (int argc, char **argv) {
  Foo f;
  Foo *p = &f;
  Foo &r = f;
  delete p;
  return 0;
}

Multiple aliases for same object

f is a simple alias, the object itself
p is a variable holding a pointer
r is a variable holding a reference

What happens when we call delete on p?

Destroy a stack variable (may get a bus error there if we’re lucky)
If not, we may crash in destructor of f at function exit
Or worse, a local stack corruption that may lead to problems later

Problem: object destroyed but another alias to it was then used (dangling pointer issue)

Memory Lifetime Errors


Foo *bad() {
  Foo f;
  return &f; // return address of local variable, f is destroyed after function returns
}

Foo &alsoBad() {
  Foo f;
  return f; // return reference to local variable, f is destroyed after function returns
}

Foo mediocre() {
  Foo f;
  return f; // return copy of local variable, f is destroyed after function returns, danger when f is a large object
}

Foo * good() {
  Foo *f = new Foo;
  return f; // return pointer to local variable, with new we can return a pointer to a dynamically allocated object, but we must remember to delete it later
}

int main() {
  Foo *f = &mediocre(); // f is a pointer to a temporary object, which is destroyed after function returns, f is invalid after function returns
  cout << good()->value() << endl; // good() returns a pointer to a dynamically allocated object, but we did not store the pointer, so it will be lost after function returns, making it impossible to delete it later.
  return 0;
}

Automatic variables

Are destroyed on function return
But in bad, we return a pointer to a variable that no longer exists
Reference from also_bad similar
Like an un-initialized pointer

What if we returned a copy?

Ok, we avoid the bad pointer, and end up with an actual object
But we do twice the work (why?)
And, it’s a temporary variable (more on this next)

We really want dynamic allocation here

Dynamically allocated variables

Are not garbage collected
But are lost if no one refers to them: called a “memory leak”

Temporary variables

Are destroyed at end of statement
Similar to problems w/ automatics

Can you spot 2 problems?

One with a temporary variable
One with dynamic allocation

Double Deletion Errors


int main (int argc, char **argv) {
  Foo *f = new Foo;
  delete f;
  // ... do other stuff
  delete f; // will throw an error because f is already deleted
  return 0;
}

What could be at this location?

Another heap variable
Could corrupt heap

Shared pointers and the RAII idiom

A safer approach using smart pointers

C++11 provides two key dynamic allocation features

shared_ptr : a reference counted pointer template to alias and manage objects allocated in dynamic memory (we’ll mostly use the shared_ptr smart pointer in this course)
make_shared : a function template that dynamically allocates and value initializes an object and then returns a shared pointer to it (hiding the object’s address, for safety)

C++11 provides 2 other smart pointers as well

unique_ptr : a more complex but potentially very efficient way to transfer ownership of dynamic memory safely (implements C++11 “move semantics”)
weak_ptr : gives access to a resource that is guarded by a shared_ptr without increasing reference count (can be used to prevent memory leaks due to circular references)

Resource Acquisition Is Initialization (RAII)

Also referred to as the “Guard Idiom”

However, the term “RAII” is more widely used for C++

Relies on the fact that in C++ a stack object’s destructor is called when stack frame pops

Idea: we can use a stack object (usually a smart pointer) to hold the ownership of a heap object, or any other resource that requires explicit clean up

Immediately initialize stack object with the allocated resource
De-allocate resource in the stack object’s destructor

Example: Resource Acquisition Is Initialization (RAII)


shared_ptr<Foo> createAndInit() {
 shared_ptr<Foo> p =
    make_shared<Foo> ();
 init(p);// may throw exception
 return p;
}

int run () {
  try {
    shared_ptr<Foo> spf =
                 createAndInit();
    cout << “*spf is ” << *spf;
  } catch (...) {
     return -1
  }
  return 0;
}

RAII idiom example using shared_ptr


#include <memory>
using namespace std;

shared_ptr<X> assumes and maintains ownership of aliased X
Can access the aliased X through it (*spf)
shared_ptr<X> destructor calls delete on address of owned X when it’s safe to do so (per reference counting idiom discussed next)
Combines well with other memory idioms

Reference Counting

Basic Problem

Resource sharing is often more efficient than copying
But it’s hard to tell when all are done using a resource
Must avoid early deletion
Must avoid leaks (non-deletion)

Solution Approach

Share both the resource and a counter for references to it
Each new reference increments the counter
When a reference is done, it decrements the counter
If count drops to zero, also deletes resource and counter
“last one out shuts off the lights”

Reference Counting Example


shared_ptr<Foo> createAndInit() {
 shared_ptr<Foo> p =
    make_shared<Foo> ();
 init(p);// may throw exception
 return p;
}

int run () {
  try {
    shared_ptr<Foo> spf =
                 createAndInit();
    shared_ptr<Foo> spf2 = spf;
    // object destroyed after
    // both spf and spf2 go away
  } catch (...) {
     return -1
  }
  return 0;
}

Again starts with RAII idiom via shared_ptr

spf initially has sole ownership of aliased X
spf.unique() would return true
spf.use_count would return 1

shared_ptr<X> copy constructor increases count, and its destructor decreases count

shared_ptr<X> destructor calls delete on the pointer to the owned X when count drops to 0
